Brass Stacker See Thru Scout Scope Mount and NcSTAR 2.75x22mm SCOUT SCOPE Combo for 8mm Mauser variant designs with K98 type recoil lug and rear sight blocks (K98k, M24/47, M48, vz. 24, etc.)

You looking to find the "Brass Stacker See Thru Scout Scope Mount and NcSTAR 2.75x22mm SCOUT SCOPE Combo for 8mm Mauser variant designs with K98 type recoil lug and rear sight blocks (K98k, M24/47, M48, vz. 24, etc.)" Good news! You can purchase Brass Stacker See Thru Scout Scope Mount and NcSTAR 2.75x22mm SCOUT SCOPE Combo for 8mm Mauser variant designs with K98 type recoil lug and rear sight blocks (K98k, M24/47, M48, vz. 24, etc.) with secure price and compare to view update price on this product. And deals on this product is available only for limited time.

Price: $170.00

Product Feature

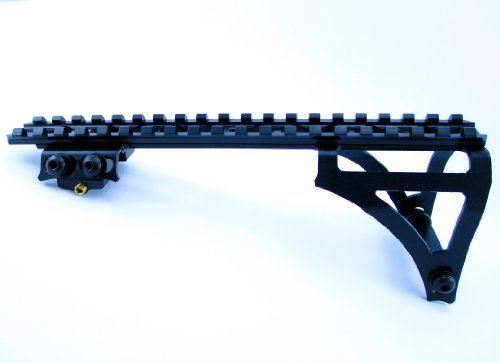

• Brass Stacker "ANCHOR POINT" Series Scout Scope Mount. The innovative "Anchor Point" design provides superior mount stability. See through design with steel picatinny rail, installs in minutes. No rifle disassembly or permanent modification required. No bolt handle or stripper clip interference. No contact with stock. Unit comes loosely preassembled. Rigid steel construction, Made in America, 100% Lifetime Warranty!
• Product provides for mounting of scout scope or other long eye relief optics to *Mauser rifles without the need to drill and tap the receiver or make any permanent modifications to firearm. Allows for the continued use of the original fixed/iron sights. *This mount fits the majority of 8mm Mauser variant designs with K98 type recoil lug and rear sight blocks (K98k, M24/47, M48, vz. 24, etc.). It will NOT fit Argentine, Swedish or Turkish Mausers. PLEASE READ FITMENT NOTES BEFORE PURCHASING!
• MOUNT: 1) CNC laser cut perimeter, die punched holes and mounting slots, form tapped threads and die press formed. 3/32" (13 ga.) thick HR, P&O type CS-B A569 carbon steel; 40000 psi yield strength. Black oxide plated. Picatinny Rail: 1) CNC machined to MIL-STD-1913, 8" long, HR ATSM A36 low carbon steel; 36000 psi yield strength. Black oxide plated. Recoil Lug Bar: 1) 1018 low carbon steel, roll form tapped #10-32 UNF. Black oxide plated. Stand Off: 2) 12L14 alloy steel. Black oxide plated.
• This Brass Stacker Combo includes the NcSTAR 2.75x22mm SCOUT SCOPE Model: SSB27522G UPC 814108011116. Features: Varying Range of Intermediate Eye Relief designed specifically for Scout Rifles Hard Coat Anodized One Piece 30mm Aluminum Main Tube, Fixed Power Magnification, Non-illuminated Plex Reticle, Fully Multi Coated lenses, Low Profile 30mm Weaver Style Rings, Flip-Up Lens Caps, Lifetime Limited Warranty. EXTERIOR FINISH: Matte Black, LENS COATING: Green.
• NcSTAR 2.75x22mm SCOUT SCOPE Specifications: MODEL: SSB27522G, MAGNIFICATION: 2.75X, TUBE DIAMETER: 30mm, OBJECTIVE, DIAMETER: 22mm, FIELD OF VIEW (at 100 yds): 10.5 ft, EYE RELIEF: 8.5-14.0 in, EXIT PUPIL: 8mm, RETICLE: Plex, NET WEIGHT: 10.5 oz, LENGTH: 9.2 in, CLICK VALUE: � MOA Windage and Elevation Adjustments.

Product Description

MOUNT FEATURES: Brass Stacker "ANCHOR POINT" Series scout scope mount and or other long eye relief optics to *Mauser rifles without the need to drill and tap the receiver or make any permanent modifications to firearm. The Scout Scope Mount is designed to use the recoil lug attachment point and rear sight pivot attachment point allowing for the continued use of the original fixed/iron sights. SPECIFICATIONS: The mount will accommodate a front to back (horizontal) distance of 5.86" (148.9mm) to 6.26" (159.1mm) from the center of the recoil lug to the center of the rear sight block pivot. It also allows for an up and down (vertical) distance of 1.32" (33.6 mm) to 1.67" (42.3 mm) from the same. The rear sight riser block is designed to fit over rear sight blocks that measure a maximum of .74" (18.9 mm) wide. The total weight including hardware is 9.5 oz. However, the net weight increase is only 8.7 oz. due to the replacement of the original recoil lug bar and nut. TOOLS PROVIDED: Wrench: 1) 3/32" Hex wrench - steel; 1) 1/8" Hex wrench - steel; 1) 1/2" Hex body spanner wrench -steel, black oxide finish; Complete installation instructions are supplied. TOOLS REQUIRED: Safety glasses, solid work surface or vise, hammer, punch, optional spanner wrench. FITMENT NOTES: We have made every reasonable effort to ensure that this product will fit the majority of *Mauser rifle variants. However, due to the large number of these firearms produced over many years around the world, it is impossible for us to allow for all manufacturing variation. As with any of our products, it may be returned undamaged for a full refund. The mount can only accommodate so much misalignment. You should measure the center distances as described in the SPECIFICATIONS to ensure that the mount will fit properly. Proper tightening of all hardware should result in no movement of the mount during normal firing recoil.

Brass Stacker See Thru Scout Scope Mount and NcSTAR 2.75x22mm SCOUT SCOPE Combo for 8mm Mauser variant designs with K98 type recoil lug and rear sight blocks (K98k, M24/47, M48, vz. 24, etc.) Review

I've been happy with the mount. It was easy to install and works well. I especially enjoy the fact that no permanent modification to the firearm is required to install the mount.
